Henan household natural gas alarm detector/home security LPG alarm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CHICHENG |
| Certification | CE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Sets |
| Price | $6.00 - $12.00/Sets |
| Packaging Details | each set natural gas leak detector will be packed with the export standard carton package or aluminum box or as per customer require |
| Supply Ability | 2000 Set/Sets per Day LPG gas leak detector alarm |
| Network | NBiot | Model | Home Security Gas Detector Alarm |
|---|---|---|---|
| Detected Gas | Natural Gas | MOQ | 100 |
| Response Time | T90<=30s | Alarm Level | 7%LEL/natural Gas, 100ppm/co |
| Temperature | -10℃~+55℃ | Audible Alarm Level | >=80dB |
| Size | 120mm (L)*82mm(W) *45mm(H) | Warranty | 2 Years |
| Weight | 230g | Port | Qingdao |
Henan household natural gas alarm detector/home security LPG alarm
HD1000 household natural gas alarm detector use advanced gas-sensitive elements which with advanced gas detection industrial electric technique and technology.
This model HD1000 household natural gas alarm detector is applied in detecting combustible gas LPG,LNG methane and CO in the air at home.
Once the gas concentration is over the pre-set alarm value, HD1000 household natural gas alarm detector
will give out audible visual alarm to remind people to take safety measures or drive the ventilation device so that the dangerous fire disaster can be prevented, people can be safe at home.
Application of HD1000 household natural gas alarm detector:
It is optimized for use by professionals with explosive gas leak detection and it is ideally suited for use in private or social housing, such as bedrooms, hotels, hospitals and even dormitory rooms where the natural gas and LPG CO pose a substantial hazard if a leak occurs.
Detail features of the HD1000 household natural gas alarm detector:
1. Detecting gas co/natural/methane gas and propane gas, coal gas etc combustible gas.
2. High reliability--Catalytic combustion gas sensor
--professional low profile design
3. With special circuit (MCU processing control and SMT manufacture Technology).
--Comply to GB15322.2-2003.
4. Easy to Install--Unit plugs directly into any wall outlet.
5. Easy operation--Clearly visible status indications LEDS (power, preheat, fault and alarm).
--Button for test and rest: Test the alarm electronics and reset the unit during alarm.
--Loud 80dB at 1m
6. Low total cost --Ideal for easy installation
--Direct connection to a solenoid valve
--5 years working life with 2 year guarantee.
7. Designed for residential environment--Slim,small, compact design with stylish features, ideal for residential setting and modern decorations.
| Model | HD1000 natural gas leak detector |
| Detect gas | Combustible Gas (LEL) or Carbon Monoxide (CO) |
| Detecting principle | Catalytic combustion sensor or electro-chemical detector |
| Setting alarm | 7%LEL for natural gas/LPG, 100umol/mo/CO. |
| Accuracy | +/-3%LEL |
| Output | Shut off valve output or relay output |
| Wiring | Plug-in |
| Audible alarm level | >=80dB |
| Response time | T90<=30s. |
| Operating voltage | 110V-230VAC 50/60Hz |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 1×b×h, 120mm×82mm×45mm |
| Weight | 230g |
| Lifetime | 5 years |
| Warranty | 2 years |

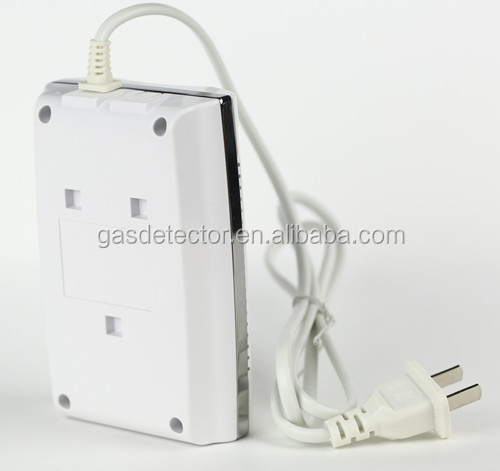

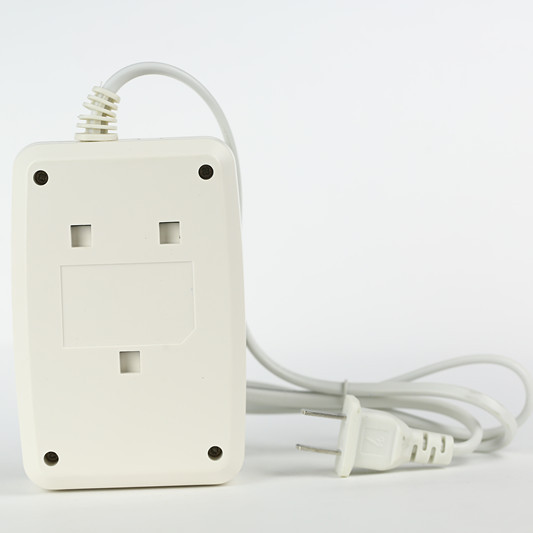

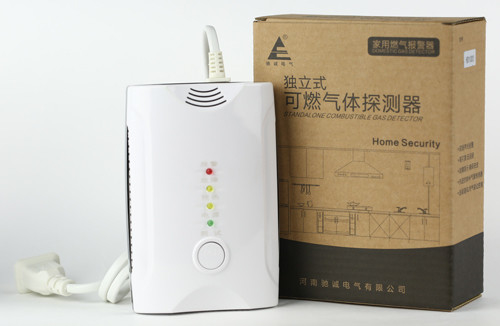

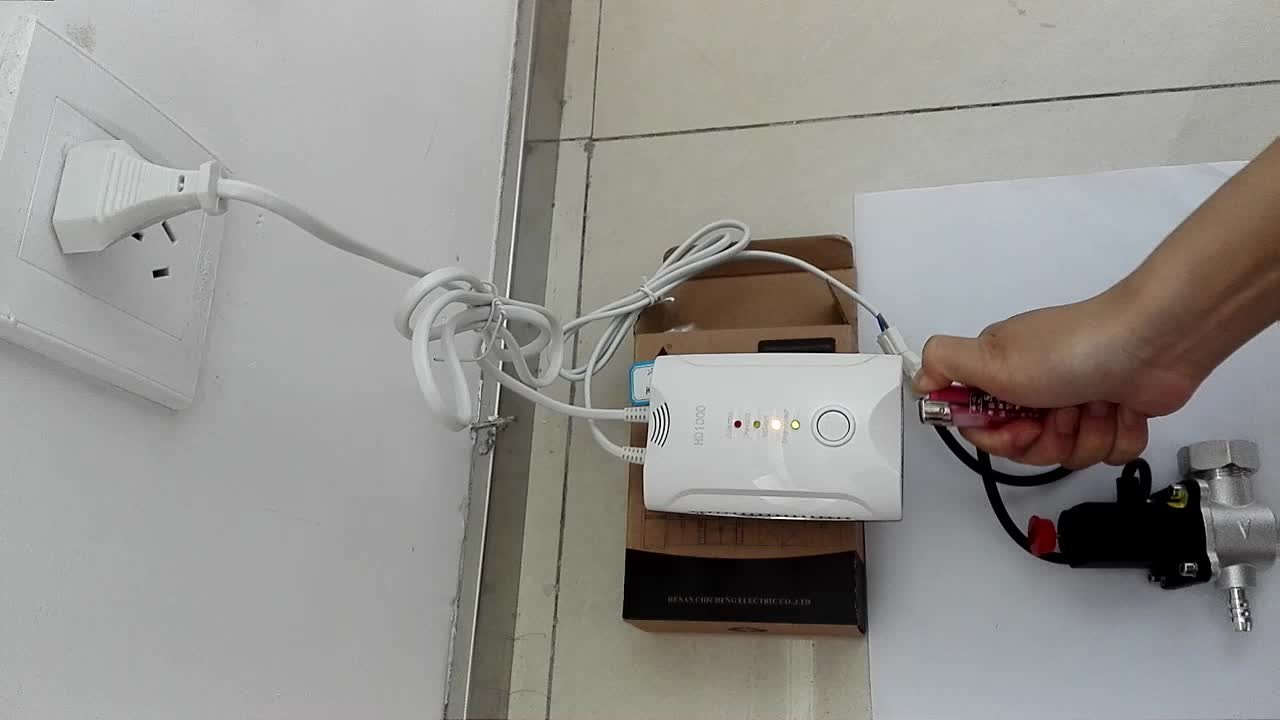

Detail show of the natural gas leak detector:
We have more related natural gas leak detector:

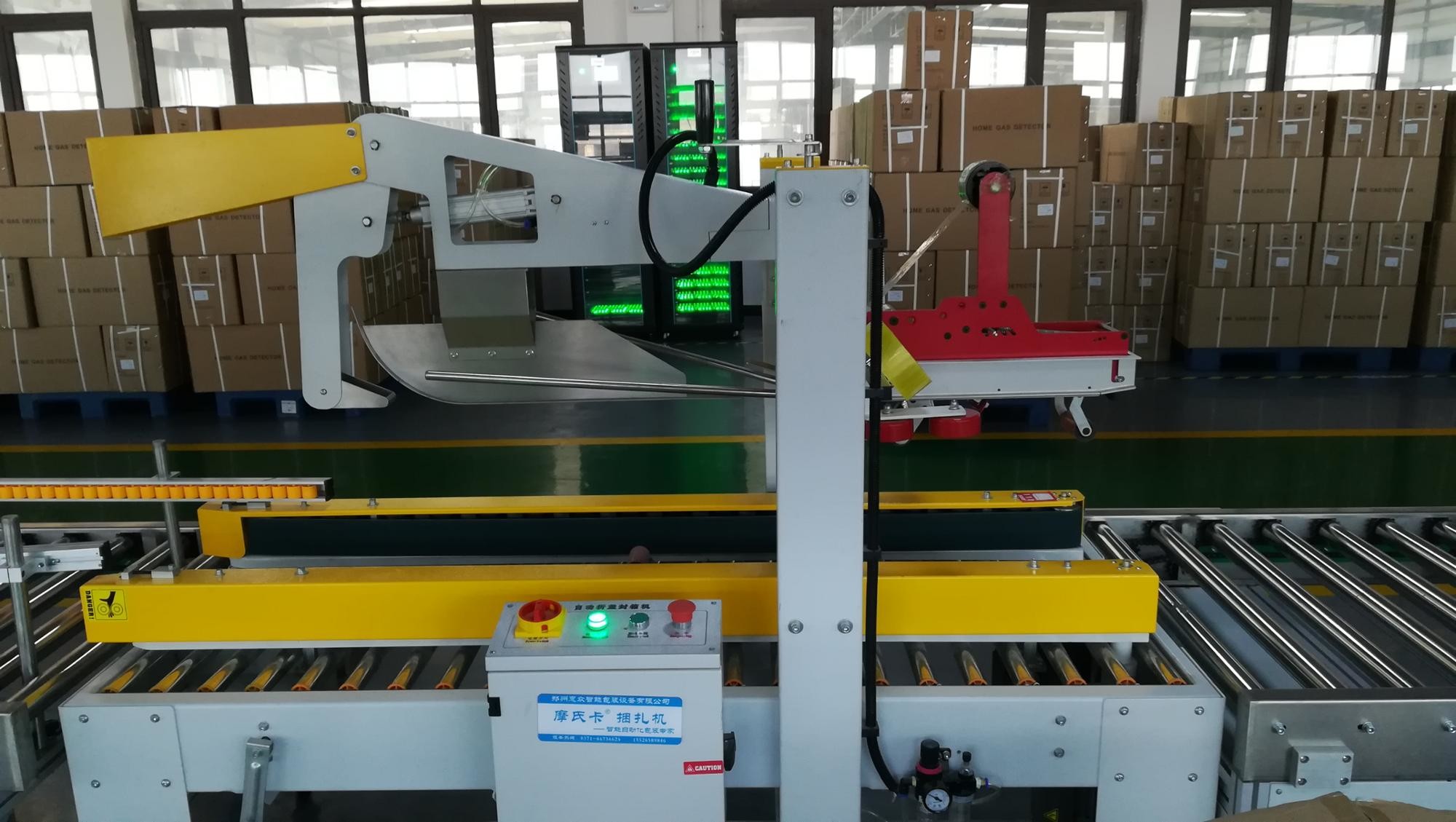

Each type natural gas leak detector will be packed carefully
Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech import and export company and also the government permitted gas detecting device manufacture with Measurement of
production License (MC), The explosion-proof certificate (EX) and Fire type certificate (CNAS) approved, we are in in the research and marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument and we
are in Zhengzhou Henan China.
We aim at providing customers quality product. Each properly suited to its task, timely service and
support. Sincerely welcome customers worldwide.
Dear friend, Thanks for visiting. If interested in our household natural gas alarm detector, just click and send your valuable inquiry.Tks!
