Villa, house, office,hotel Usage kitchen gas leak sensor methane gas detector
| Place of Origin | China |
|---|---|
| Brand Name | CCE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Pieces |
| Price | $6.00 - $12.00/Pieces |
| Packaging Details | STANDARD PACKAGE OR AS YOU REQUIRED |
| Supply Ability | 2000 Piece/Pieces per Day |
| Special Features | Remote Control | Model | HD1000A |
|---|---|---|---|
| Detected Way | Natural Diffusion | Power Supply | AC110-230V |
| Color | White | Solenoid Valves | Optional |
| Detecting | LPG,LNG,Natual Gas,combustible Gas Etc | Warranty | Free Calibration And Free Warranty Within A Year |
| Enclosure Material | ABS | Port | Tianjin, Shanghai, Shenzhen, Wuhan, Qingdao |
Villa, house, office,hotel Usage kitchen gas leak sensor methane gas detector
A leading manuifaturer in China, Chicheng Electric mainly manufacture household gas detector, portable multi/single gas detector and fixed gas sensor, control panel for a wide range of hazardous gases.
Application:
HD1000A Kitchen Lpg & Natural Gas Leak Alarm Detector is optimized for use by professionals with explosive gas leak detection and it is ideally suited for use in private or social housing, such as bedrooms, hotels, hospitals and even dormitory rooms where the natural gas and LPG pose a substantial hazard if a leak occurs.
Features & Benefits:
Detecting gas: natural/methane gas and propane gas, lpg gas etc combustible gas.
High reliability
--Catalytic combustion gas sensor
--professional low profile design
--With special circuit(MCU processing control and SMT manufacture Technology).
--Comply to GB15322.2-2003.
Easy to Install--Unit plugs directly into any wall outlet.
Easy operation
--Clearly visible status indications LEDS (power, preheat, fault and alarm).
--Button for test and rest: Test the alarm electronics and reset the unit during alarm.
--Loud 80dB at 1m
Low total cost
--Ideal for easy installation

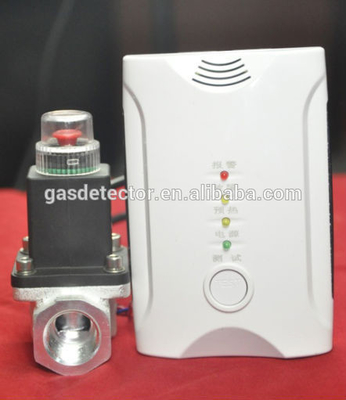

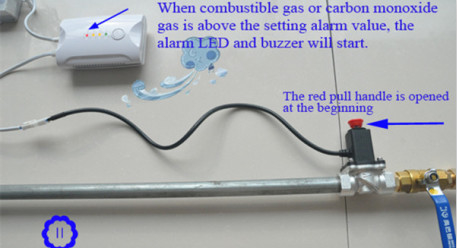

--Direct connection to a solenoid valve
--5 years working life with 2 year guarantee.
Designed for residential environment--Slim,small, compact design with stylish features, ideal for residential setting and modern decorations.
Technical Specifications:
Model: HD1000A
Detecting principle: catalytic combustion sensor
Calibration gas: LPG Gas, natural gas
Alarm level: 10%LEL
Accuracy: +/-3%LEL
Audible alarm level: 80dB at 1m

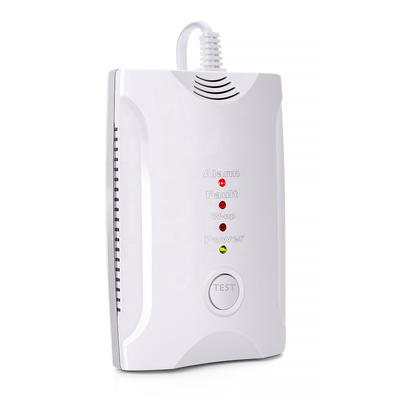

Visual indicator:
Green LED indicates receiving electric power and operating properly.
Yellow LED above Power LED illuminates in the warming up mode.
Yellow LED below Red LED is fault LED means the gas detection sensor or circuit is not working efficiently and must be replaced by an authorized service center.
Red LED illuminates when in alarm mode.
Button: For test units electronic circuit and horn and rests the units during alarm.
Power supply: 110V-230VAC 50/60Hz.
Temperature: -10℃~+55℃
Output: Gas shut off valve output or relay output
Humidity: ≤95%RH (no condensation)
Size: 118mm (L)×78mm(W) ×38mm(H)/ 4.6'L*3.1'W*1.5’H.
Net Weight: 330g

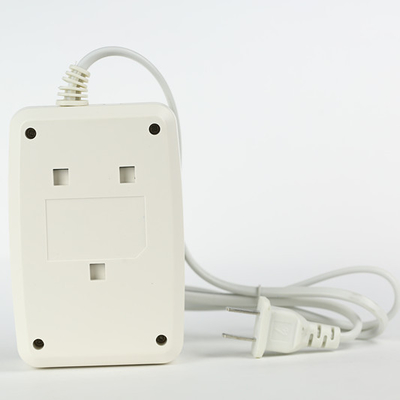

Wiring: plug-in
Lifetime/Warranty: 5years/ 2 years.

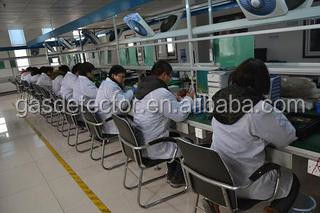

Established in 2004, Henan Chicheng Electronics Co.,Ltd is speclized in the R&D, manufacture, marketing of gas detector device in China, we can always supply you professional technical support and solutions.
With ISO9001-2000 Certified, Chicheng products are mainly divided into household gas alarm, portable single/multi gas detector, industrial fixed gas detecting transmitter, etc.
Henan Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries.
Sincerely welcome customers worldwide. OEM and ODM welcome !
