HD1000 Factory wholesales home use combustible gas detector LPG CH4 CO leak alarm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CHICHENG |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Sets |
| Price | $6.00 - $12.00/Sets |
| Packaging Details | each set will be packed with the export standard carton package |
| Supply Ability | 2000 Set/Sets per Day |
| Special Features | Tamper Alarm, Waterproof / Weatherproof | Detected Gas | Lpg Lng Co |
|---|---|---|---|
| Color | White | Model | HD1000 |
| Response Time | T90<=30s | Alarm Level | 100ppm/co |
| Temperature | -10℃~+55℃ | Audible Alarm Level | >=80dB |
| Size | 120mm (L)*82mm(W) *45mm(H) | Warranty | 2 Years |
| Weight | 230g | Port | Qingdao |
HD1000 Home use combustible gas detector LPG CH4 CO leak alarm
Product descritption:
HD1000 home use combustible gas detector use advanced gas sensitive elements which with advanced gas detection industrial electric technique and technology.
this model gas monitor is applied in detecting combustible gas LPG LNG, methane and CO in the air at home. Once the gas concentration is over the preset alarm value. the security system lpg gas detector will give out audiblevisual alarm to remind people to take safety measures or drive the ventilation device so that
the dangerous fire disaster can be prevented, people can be safe at home.
Application of the home use combustible gas detector:
HD1000 home use combustible gas detector is optimized for use by professionals with explosive gas leak detection and it is ideally suited for use in private or social housing, such as bedrooms, hotels, hospitals and even dormitory rooms where the natural gas and LPG CO pose a substantial hazard if a leak occurs.
Features of the home use combustible gas detector:
Detecting gas co/natural/methane gas and propane gas, coal gas etc combustible gas.
High reliability--Catalytic combustion gas sensor
--professional low profile design
--With special circuit (MCU processing control and SMT manufacture Technology).
--Comply to GB15322.2-2003.
Easy to Install--Unit plugs directly into any wall outlet.
Easy operation--Clearly visible status indications LEDS (power, preheat, fault and alarm).
--Button for test and rest: Test the alarm electronics and reset the unit during alarm.
--Loud 80dB at 1m
Low total cost--Ideal for easy installation
--Direct connection to a solenoid valve
--5 years working life with 2 year guarantee.
Designed for residential environment--Slim,small, compact design with stylish features, ideal for residential setting and modern decorations.
Technical index of the home use combustible gas detector:
| Model | HD1000 home use combustible gas detector |
| Detect gas | Combustible Gas (LEL) or Carbon Monoxide (CO) |
| Detecting principle | Catalytic combustion sensor or electro-chemical detector |
| Setting alarm | 7%LEL for natural gas/LPG, 100umol/mo/CO. |
| Accuracy | +/-3%LEL |
| Output | Shut off valve output or relay output |
| Wiring | Plug-in |
| Audible alarm level | >=80dB |
| Response time | T90<=30s. |
| Operating voltage | 110V-230VAC 50/60Hz |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 1×b×h, 120mm×82mm×45mm |
| Weight | 230g |
| Lifetime | 5 years |
| Warranty | 2 years |

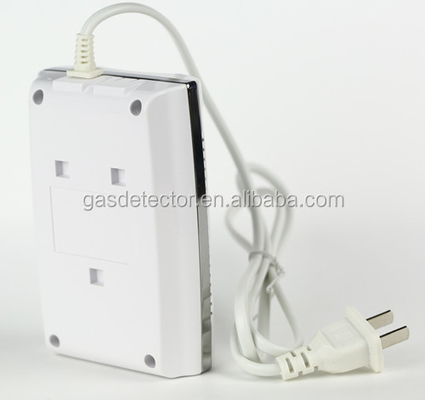

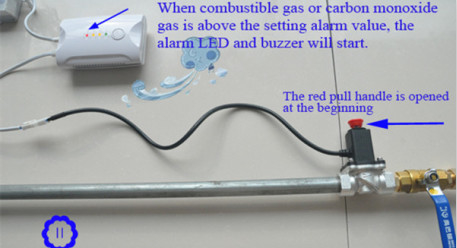

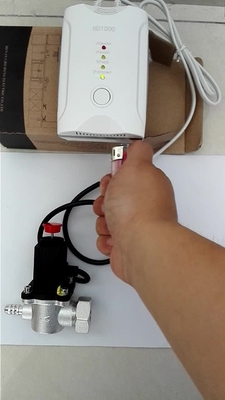

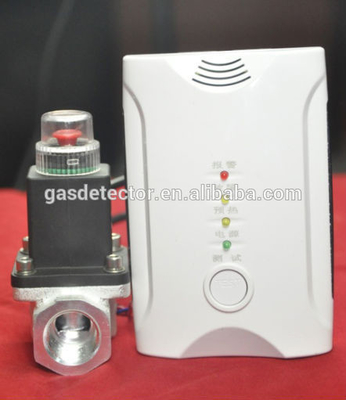

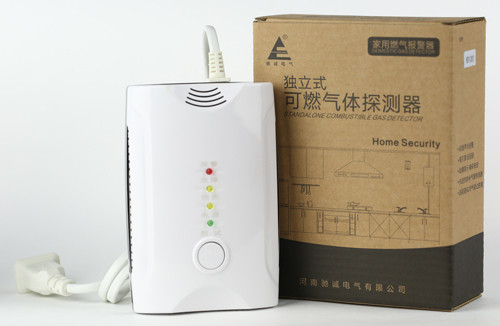

The detail illustration of the home use combustible gas detector made in china:
The packaging delivery and payment of the home use combustible gas detector:
| The packaging includes
1. Alarm with plug 2. Setscrew 3. Install backplane 4. Warranty card 5. Quality Certificate
| |
| Carton box specification 1. Quantity: 30pcs per carton box 2. Carton box size: Length:48cm Width :30cm Height:27cm 3. one Carton box weight: 9.6kg |
