Portable underground parking stand alone industrial single outdoor co carbon monoxide gas detectors monitor alarm analyzer
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Certification | CE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Sets |
| Price | $6.00 - $12.00/Sets |
| Packaging Details | Standard export carton |
| Supply Ability | 2000 Set/Sets per Day |
| Network | NBiot | Usage | Propane Leak Alarm Detector |
|---|---|---|---|
| MOQ | 100 | Enclosure Material | ABS |
| Power Supply | AC110/220V | Plug | EU, USA Standard |
| Solenoid Valves | Optional | Detected Way | Natural Diffusion |
| Gas | LPG, LNG, CO, CH4, Natural Gas, Combustible Gas Etc | Output | 12V DC Output, Connected With Valve |
| Warranty | Free Calibration And Free Warranty Within 2 Years | Port | Qingdao, Shanghai, |
Portable underground parking stand alone industrial single outdoor co carbon monoxide gas detectors monitor alarm analyzer
Portable underground parking stand alone industrial single outdoor co carbon monoxide gas detectors monitor alarm analyzer description
This detector is applied in detecting combustible gas LPG, methane, CO in the air at home. Once the gas
concentration is over the pre-set alarm value,the device will send out audible-visual alarm to remind
people to take safety measures or drive the ventilation device to prevent the potential fire accident.
Portable underground parking stand alone industrial single outdoor co carbon monoxide gas detectors monitor alarm analyzer features
- Advanced catalytic sensor
- Electro-chemical CO sensor
- Professional low profile design
- With special circuit (MCU processing control and SMT manufacture Technology)
- Direct connection to a solenoid valve

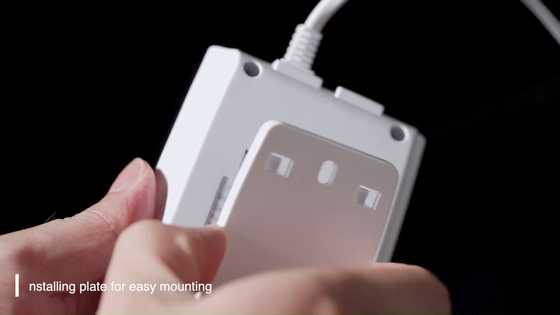

Installation: Unit plugs directly into any wall outlet
Portable underground parking stand alone industrial single outdoor co carbon monoxide gas detectors monitor alarm analyzer applications
Portable underground parking stand alone industrial single outdoor co carbon monoxide gas detectors monitor alarm analyzer specification
| Model | HD1000 |
| Detect gas | LPG, natural gas, LNG and carbon monoxide (CO) |
| Detecting principle | Advanced semiconductor sensor & electro-chemical CO sensor |
| Setting Alarm | 7%LEL for natural gas/LPG, 100ppm/CO |
| Wiring | plug-in |
| Accuracy | +/-3%LEL |
| Audible alarm level | ≥80dB |
| Response time | T90≤30s |
| Operating voltage | AC220V/110V ±15% (as per different electric spec) |
| Power consumption | 2.5W |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 120mm (L)×82mm(W)×45mm(H) |
| Weight | 230g |
| Lifetime | 5 Years |
| Warranty | 2 Years |
Portable underground parking stand alone industrial single outdoor co carbon monoxide gas detectors monitor alarm analyzer details
Company introduction
Product overview:
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
Propane Gas Leak Detector packing & delivery
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
